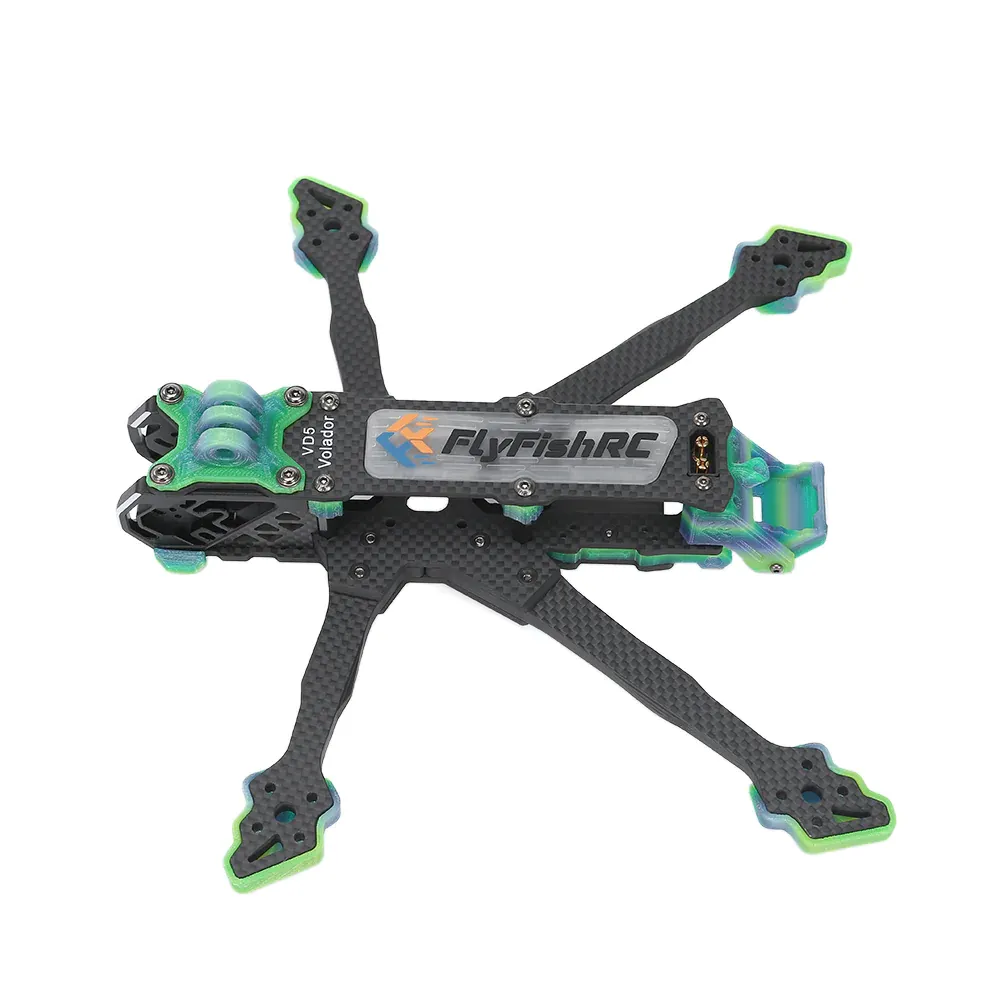

Volador VD5 Deadcat FPV LR T700 Frame Kit

The FlyFishRC Volador VD5 Deadcat is widely regarded as one of the most "premium-feeling" freestyle and long-range frames currently available. While most frames use standard T300 carbon fiber, the Volador uses T700 carbon fiber, which has a significantly smoother finish and higher strength-to-weight ratio.

• T700 Carbon Fiber Construction: Unlike common carbon fiber, T700 is stiffer and stronger. This allows for thinner arms that maintain extreme rigidity, reducing "mid-throttle oscillations" and making the drone feel more "locked-in" during aggressive maneuvers.

• Deadcat Geometry: The front arms are swept back further than a standard "X" frame. This ensures that even with wide-angle lenses like the DJI O3 or a GoPro, your propellers are never visible in your 4K footage.

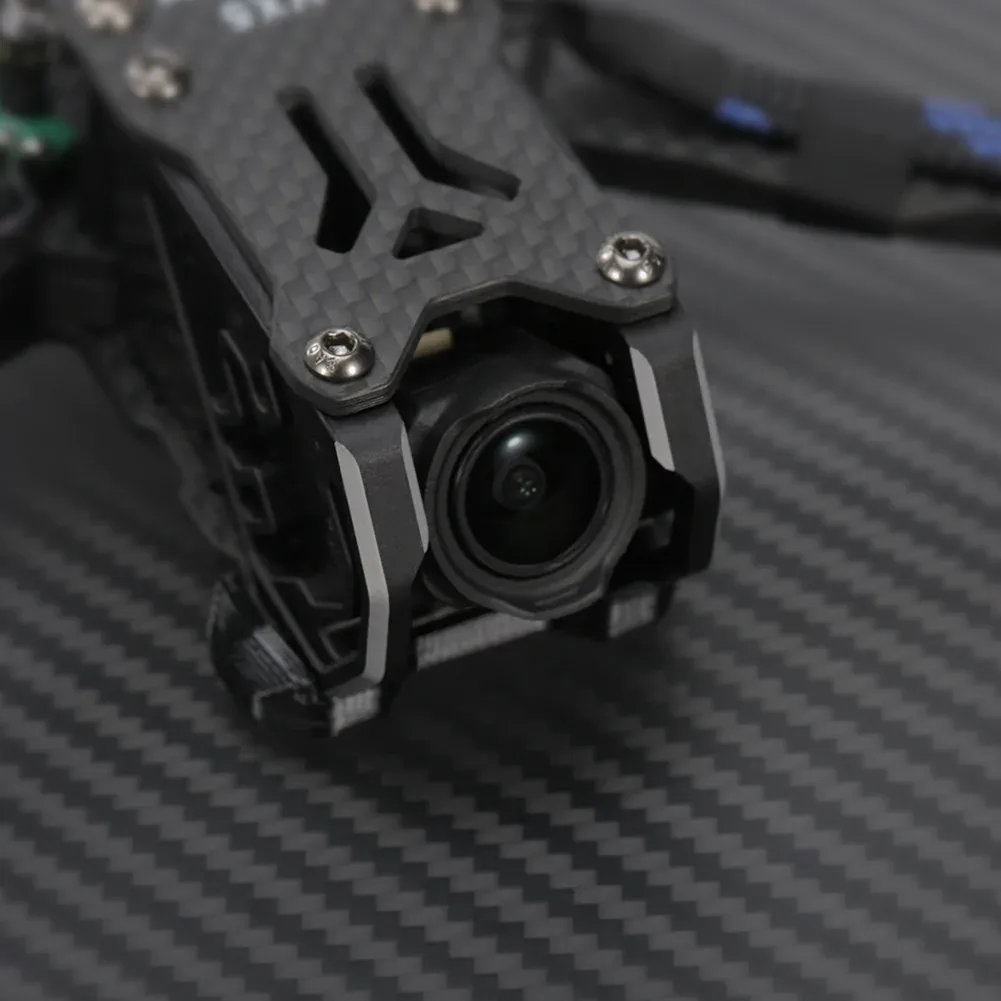

• Integrated Silicone Dampening: The frame features a unique camera mounting system with custom silicone inserts. This "soft-mounting" isolates the camera from the frame's vibration, which is critical for getting the best performance out of Gyroflow or RockSteady.

• Protective "Bumpers": The VD5 comes with high-quality TPU parts, including a front "bumper" and arm protectors, shielding the carbon fiber from delamination during hard landings on concrete.

• Ease of Assembly: The frame uses high-quality 12.9-grade hardware and features a layout that makes wire management exceptionally clean, with enough space for dual 20x20 or 30x30 stacks.

Technical Specifications:

• Wheelbase: 225mm (Deadcat)

• Arm Thickness: 6mm

• Top/Bottom Plate Thickness: 2.5mm / 3mm

• Carbon Type: T700 (High-Strength)

• Camera Mounting Width: 19mm/20mm (DJI O3 Compatible)

• Stack Mounting: 20x20mm & 30.5x30.5mm

• VTX Mounting: 20x20mm & 25.5x25.5mm

• Weight: ~145g (with TPU parts)

The Pilot's Reality Check:

• The "Premium" Feel: You will notice immediately that the edges of the carbon are chamfered (rounded) and the surface is silkier than cheaper frames. It feels like a boutique product.

• Build Space: While it's a 5-inch frame, the "Deadcat" layout can make the interior feel slightly longer but narrower. Planning your wire routing for the VTX in the rear is key to a clean build.

• 1 * Volador VD5 V2 Frame Kit (T700 Carbon)

• 4 * 6mm Carbon Fiber Arms

• 1 * CNC Aluminum Camera Mount Set

• 1 * Set of Silicone Vibration Dampers (for Camera)

• 1 * Full TPU Kit (Arm protectors, Bumper, GPS/Antenna mounts)

• 2 * Battery Anti-slip Pads

• 2 Battery Straps (20250mm)

• 1 * 12.9 Grade Steel Hardware Pack

• 1 * Assembly Instruction Manual
